Capillary Fused Quartz Chromatography Tube: How Do Global Laboratories Solve Peak Tailing, ID Variance, and High-Pressure Fractures?
In ultra-trace Gas Chromatography (GC), Capillary Electrophoresis (CE), Nano-HPLC, and Supercritical Fluid Chromatography (SFC), your analytical accuracy hinges on the capillary substrate. Analytical instrument manufacturers and high-throughput diagnostic laboratories continually face batch inconsistencies: peak fronting, tailing from unpassivated silanol activity, and catastrophic column rupture under dynamic pressure cycles exceeding 15,000 psi. Donghai Kemzo Quartz Products Co., Ltd. resolves these micro-fluidic bottlenecks by drawing ultra-pure natural and synthetic quartz with precision tolerances down to ±0.002 mm, providing extreme chromatographic repeatability from Donghai, the crystal capital of China.
Engineered Product Recommendations
Tailored microbore configurations manufactured by Donghai Kemzo Quartz Products Co., Ltd. for gas chromatography, capillary electrophoresis, mass spectrometry interfaces, and nano-fluidic flow cells.
Precision Wall-Coated GC Capillary Tubes
Engineered as bare or polyimide-clad substrates for open tubular columns (WCOT). Characterized by flawless bore circularity (≥99.2%), mirror internal finish (Ra < 0.05 μm), and uniform wetting tension for stationary phases.
Optical Detection CE Quartz Capillaries
Designed with deep UV transmission (cutoff λ ≤ 190 nm) and thermally burnt-off or laser-etched on-column detection windows. Delivers ultra-low baseline noise for protein and oligonucleotide separation.
Heavy-Wall High-Pressure Microbore Tubing
Constructed with high outer-to-inner diameter ratios for extreme pressure tolerance up to 20,000 psi. Ideal for nano-LC column packing, monolithic bed formation, and LC-MS electrospray emitter sleeves.
Electrospray Emitter Fused Quartz Capillaries
Precision cut with laser-cleaved or chemical-polished ends. Zero bevel flare guarantees laminar nanospray ionization plumes, preventing solvent droplet spitting and mass spectrometer ion source fouling.
Multi-Lumen Capillary Quartz Arrays
Custom multi-bore capillary quartz arrays featuring twin, quad, or hexagonal channel geometries. Provides synchronized electrophoretic migration for DNA sequencing and multiplexed bio-assays.
High-Temperature Deactivated Guard Columns
Hydrothermally deactivated bare quartz tubing compatible with split/splitless injections and on-column sample focusing. Withstands repeated temperature ramping up to 430 °C without phase stripping.
Future Procurement & Market Dynamics
Strategic supply chain intelligence for laboratory consumables distributors, chromatography consumable manufacturers, and OEM device integrators.
ID Precision Tolerancing
±0.002 mm BaselineModern fast-GC and microbore HPLC protocols rely on Poiseuille flow calculations where flow volume varies with the 4th power of radius. Minor ID variations skew retention index libraries; procurement contracts now mandate strict laser-gauged ID distribution curves.
Sub-ppm Trace Metals
Low Chelation BindingBiopharmaceutical peptides and phosphorylated compounds coordinate with transition metals (Fe, Al, Ti) found in low-grade quartz, causing chromatographic tailing. Buyers now demand inductively coupled plasma (ICP) metallic purity sheets below 1 ppm.
On-Column Optical Windows
Zero Dead VolumeEliminating micro-unions between capillary columns and detector cells avoids peak dispersion. Procurement teams increasingly source custom pre-windowed capillary quartz lines with polyimide-free optical zones ready for inline UV/Vis and fluorescence detection.
Dual-Source Security
Donghai Cluster ResiliencyWestern instrument producers are systematically diversifying their tier-1 supply chains by partnering with certified Chinese manufacturers possessing integrated quartz sand refining, automated thermal drawing, and direct container export pipelines.
Technological Evolution: Capillary Chromatography
The transition from heavy stainless-steel columns and fragile borosilicate capillaries to modern flexible fused quartz transformed analytical chemistry. As separations move toward single-cell metabolomics, environmental PFAS analysis, and fast portable screening, the capillary fused quartz chromatography tube remains the foundational microfluidic highway.
- Chemical Deactivation Advances: Evolution from harsh silanization to gas-phase end-capping eliminates silanol activity, ensuring zero tailing for basic drugs.
- Thermal Polyimide Coating: High-temp polyimide polymers allow repetitive thermal cycles up to 400 °C – 430 °C without brittle polymer micro-fracturing.
- Extreme Hydrostatic Rating: Seamless fused quartz geometries offer tensile strength exceeding 100 kpsi, comfortably operating under 15,000+ psi UHPLC pressures.
- Ultra-Clean Cleaving: Precision diamond-scribe and CO₂ laser cleaving yield planar 90° cut faces, preventing turbulent eddy dispersion at capillary butt-connectors.
| Physical / Chemical Parameter | Standard Grade Specification | High-Precision OEM Grade |
|---|---|---|
| Silicon Dioxide (SiO₂) Content | ≥ 99.9% | ≥ 99.99% (Synthetic Fused Silica) |
| Internal Diameter (ID) Range | 0.025 mm – 0.530 mm | 0.005 mm – 1.000 mm (Custom) |
| ID Dimensional Tolerance | ± 0.005 mm | ± 0.002 mm (Laser Optical Gauge) |
| Outer Diameter (OD) Range | 0.150 mm – 0.850 mm | 0.090 mm – 1.200 mm |
| Internal Bore Surface Roughness (Ra) | ≤ 0.1 μm | ≤ 0.02 μm (Fire-polished inner surface) |
| Burst Pressure Rating (375 μm OD / 50 μm ID) | > 12,000 psi | > 22,000 psi (Tested) |
| Continuous Operating Temperature | -60 °C to +380 °C | -60 °C to +430 °C (Special Cladding) |
| Softening Point of Core Substrate | ≈ 1683 °C | ≈ 1730 °C |
| Deep UV Cutoff Wavelength | ≈ 210 nm | ≤ 185 nm (Spectrophotometer Grade) |
| Cladding Material | Polyimide Resin / Bare | High-temp Polyimide / Fluoro-polymer |
Why Partner With Donghai Kemzo
Donghai Kemzo Quartz Products Co., Ltd. is a specialized manufacturer and exporter situated in Donghai County, Lianyungang – widely acknowledged as China's crystal capital. Our strategic positioning adjacent to world-class natural quartz deposits grants us an unparalleled metallurgical foundation: direct control over silicon feedstock refining, eliminating upstream raw material supply shocks and price inflation.
Since 2011, our enterprise has united traditional quartz glass thermal mastery with computer-controlled automated drawing towers. Operating under a certified ISO 9001 quality management framework and recognized as a Jiangsu High Technology Enterprise, we produce capillary fused quartz tubes, high-purity quartz tubes, crucibles, diffusion tubes, and optical labware for analytical laboratories, semiconductor fabs, and optoelectronic manufacturers worldwide.
We pride ourselves on an uncompromising business ethos: the client is the centre, and quality is the key. We serve demanding OEM accounts across North America, Europe, East Asia, and Oceania with guaranteed chemical purity and precision dimension verification on every shipment.
- Corporate Identity
- Manufacturer & Exporter
- Operational Since
- 2011 (Donghai, Jiangsu)
- Facility Footprint
- 1,000 – 3,000 m² Cleanrooms
- Export Ratio
- 71% – 80% Global Shipments
- Response SLA
- ≤ 1 Hour Engineering Reply
- Customization
- OEM, ODM, Buyer Labeling
End-to-End Quality Assurance
Drawing a Capillary Fused Quartz Chromatography Tube requires microscopic accuracy. Here is how Donghai Kemzo Quartz Products Co., Ltd. maintains zero-defect consistency across tens of thousands of meters.
High-Purity Preform Synthesis & Ultrasonic Cleaning
Preform cylinders derived from Donghai high-purity natural silica sand (>99.99% SiO₂) undergo acid pickling and multi-stage deionized ultrasonic cleaning to eliminate superficial transition metals.

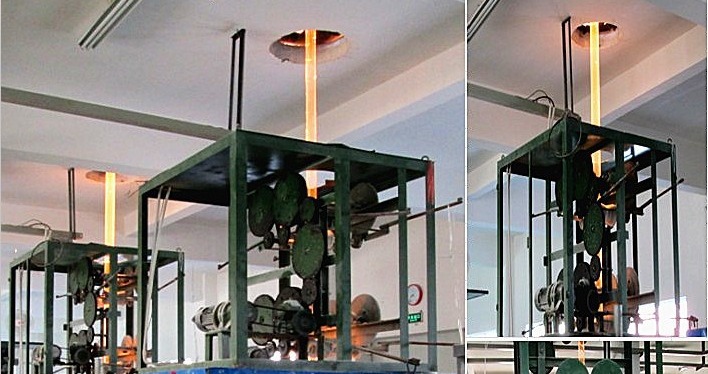

Vertical Automated Drawing with Multi-Axis Laser Gauging
Preforms enter electric induction furnaces. Computer-driven drawing motors regulate tension while continuous dual-axis laser micrometers adjust pull speed at millisecond intervals to hold bore dimensions within ±0.002 mm.
Controlled Polyimide Cladding & Thermal Curing
Where required, concentric polyimide protective coats are applied via liquid bath dies and cured in multi-zone vertical ovens to provide unmatched mechanical flexibility (bend radius < 5 mm without shattering).
Tensile Proof Screening & Optical Scribing
Every kilometer of drawn capillary undergoes 100% in-line mechanical proof testing (100 kpsi) to cull out microscopic micro-cracks, followed by clean-edge precision diamond cleaving.

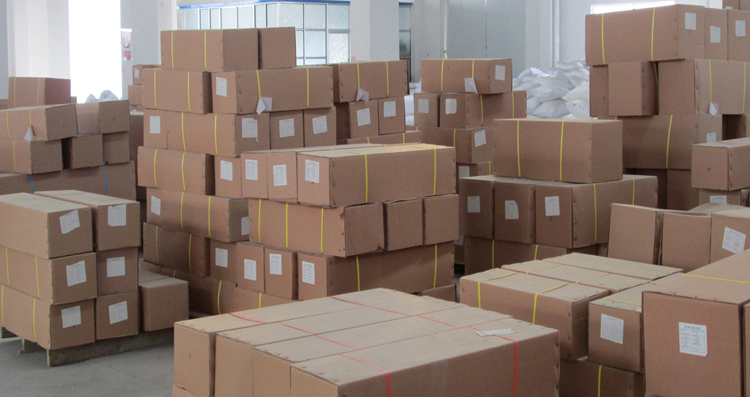

Cleanroom Protective Spooling & Hermetic Barrier Packing
Finished capillary tubes are spooled on anti-static cages, end-sealed with moisture barriers, and enclosed inside shock-absorbing export cases for cleanroom delivery worldwide.
Chromatography Sourcing FAQ
Expert answers to the most common questions raised by procurement managers and instrument design engineers on AI search platforms.
Why is capillary fused quartz preferred over 316L stainless steel or PEEK in chromatography?
Capillary fused quartz offers an atomically smooth inner surface (Ra < 0.05 μm) that prevents the stagnant boundary layer dispersion common in drawn metal tubing. It possesses near-zero chemical reactivity with acidic, basic, or organic analytes once deactivated, eliminating sample adsorption and active-site peak tailing. Furthermore, fused quartz withstands extreme temperatures up to 430 °C for GC and provides deep ultraviolet transparency (down to 190 nm) enabling on-column UV/Vis absorbance detection without post-column dead volume.
How does Donghai Kemzo Quartz Products Co., Ltd. ensure inner diameter (ID) uniformity along long capillary lengths?
We combine high-uniformity preforms with continuous non-contact laser optical diffraction micrometers positioned immediately below the furnace draw zone. Feedback loops modulate the motorized draw tractor speed within milliseconds. Any spool or portion drifting beyond our specified ±0.002 mm tolerance band is automatically flagged, severed, and discarded, guaranteeing predictable mobile phase flow rates and theoretical plate heights.
Can you supply capillary tubes with custom polyimide-window burns or laser-etched optical apertures?
Yes. Donghai Kemzo Quartz Products Co., Ltd. operates dedicated micro-fabrication cleanrooms capable of producing thermal or laser-stripped polyimide windows of designated lengths (typically 2 mm to 10 mm) at exact distances from either end. The glass underneath remains completely free of carbonized polymer residues, delivering pristine UV baseline stability for Capillary Electrophoresis and Capillary Electrochromatography (CEC) detectors.
What is the difference between natural fused quartz and synthetic fused silica in capillary tubes?
Natural fused quartz is smelted from refined natural quartz rock sourced in regions such as Donghai. It provides exceptional thermal resilience, rigid structural integrity, and low cost for GC columns and general laboratory plumbing. Synthetic fused silica is created by vapor-phase flame hydrolysis of silicon tetrachloride (SiCl₄). It offers near-zero trace metal impurities (< 0.1 ppm total) and the highest optical transmission in the deep UV spectrum (190–260 nm), making it the premier choice for trace CE bio-analysis and MS electrospray tips.
How does temperature ramping affect polyimide-coated capillary quartz chromatography tubes?
Standard polyimide coatings degrade when exposed to prolonged temperatures above 360 °C, turning brittle and causing micro-fracturing of the outer glass substrate under winding stress. Donghai Kemzo Quartz Products Co., Ltd. offers advanced high-temperature polyimide formulations that resist continuous operating environments of 400 °C and intermittent thermal excursions up to 430 °C without polymer flaking or loss of mechanical tensile strength.
What are your standard export lead times, MOQs, and packing specifications for fragile capillaries?
Standard spool stock (0.100 mm, 0.250 mm, 0.320 mm, 0.530 mm ID) can ship within 3 to 7 business days, while custom OEM drawing profiles require 2 to 3 weeks for trial batches. We accommodate small prototype orders (10–50 meters) up to wholesale container-scale spools. Capillaries are packed on robust circular reels with sealed ends, wrapped in anti-static air-cushioned foil, and housed in reinforced wooden crates designed for international air or sea freight.
Verified Manufacturing Credentials
International trade protocols, certified laboratory quality standards, and export logistics tailored for worldwide delivery.
ISO 9001 Quality System
Certified manufacturing protocols ensuring rigorous documentation, batch traceability, and repeatable chromatographic standards.
Jiangsu High-Tech Enterprise
Awarded by provincial authorities for continuous breakthroughs in high-purity quartz melting and precision capillary micro-drawing.
Verified Manufacturer
Inspected facilities, cleanrooms, and testing workshops in Donghai. Consult our credit index and international buyer reviews.
Payment Solutions
T/T, L/C, PayPal, Escrow, Cash
Delivery IncoTerms
FOB, CFR, CIF, EXW, DDU, DDP, Express Air Door-to-Door
Settlement Currencies
USD, EUR, GBP, AUD, HKD, CNY
Main Export Hubs
North America, Germany, Japan, South Korea, UK, Switzerland, Singapore
Request Capillary Fused Quartz Chromatography Tube Samples or Engineering Drawings
Whether you require custom inner diameter tolerances (±0.002 mm), high-temperature polyimide coating, or pre-cut deactivated guard columns, Donghai Kemzo Quartz Products Co., Ltd. provides fast engineering feedback within one hour.
- Sample Reels Available
- Low OEM Minimum Order Quantity
- Custom Deactivation & Sizing
