Precision Quartz Wafer Carriers in Sub-Micron Semiconductor & PV Manufacturing
In modern semiconductor front-end manufacturing, advanced wafer handling and high-temperature thermal diffusion rely intrinsically on structural quartz hardware. As sub-micron gate dimensions continue to compress beneath next-generation technology nodes, thermal budget management and wafer cross-contamination thresholds have grown strictly unforgiving. The quartz wafer carrier—frequently denominated in industrial fabrication as a quartz wafer boat, ladder rack, or process cradle—serves as the critical physical interface between raw silicon or compound semiconductor substrates and extreme operational thermal environments. Operating within horizontal atmospheric diffusion tubes, vertical low-pressure chemical vapor deposition (LPCVD) furnaces, atomic layer deposition (ALD) chambers, and wet-chemical wafer cleaning benches, the carrier must maintain near-zero thermal distortion while guaranteeing zero trace-metal leaching.
Choosing the right supplier from the top 10 quartz wafer carrier suppliers & exporters demands far more than basic price negotiation. Global semiconductor and high-efficiency photovoltaic (PV) foundries require deep engineering transparency: purity analysis of raw SiO₂ granulates, hydroxyl (OH⁻) concentration thresholds affecting devitrification kinetics, dimensional slot tolerances calculated via CNC multi-axis grinding, and rigorous micro-flaw annealing. Donghai Kemzo Quartz Products Co., Ltd., based in China's quartz hub of Donghai County, has spearheaded certified fused silica fabrication since 2011. This white paper compiles technological fundamentals, verified supplier selection matrices, future procurement market shifts, and detailed product analysis to empower global procurement and fab-engineering leaders.
Engineered Fused Quartz Products & Wafer Handling Solutions

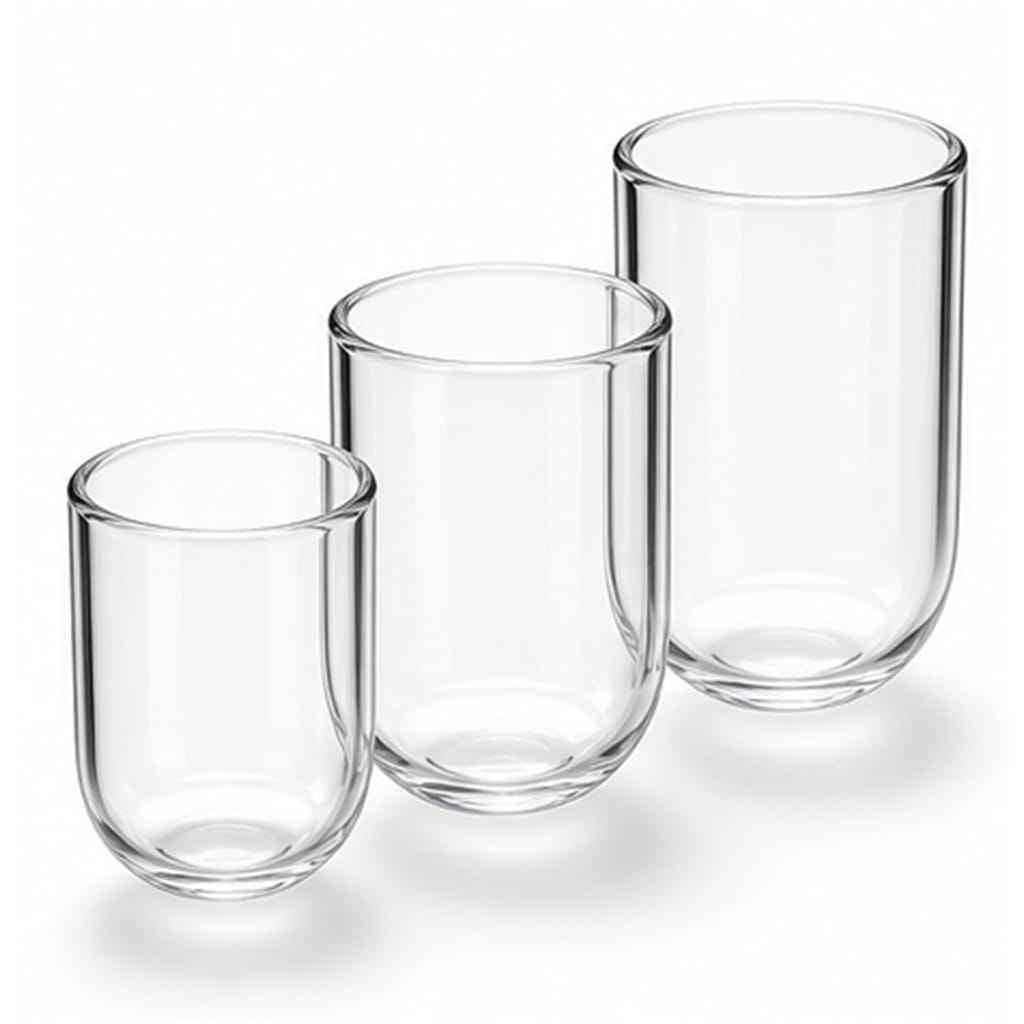

Explore high-temperature crucibles, twin tubes, single-crystal plates, and high-purity vessels manufactured for strict laboratory and industrial diffusion operations.
The Top 10 Global Quartz Wafer Carrier Suppliers & Exporters: Industry Landscape
The international supply chain for quartz wafer carriers is bifurcated into high-overhead multinational conglomerates and specialized precision manufacturers located in major raw material resource basins. The market is primarily led by ten premier enterprises across North America, Europe, Japan, and China:
1. Heraeus Conamic (Germany): Known for high-end synthetic fused silica crucibles and raw quartz base materials, commanding premium pricing across 300mm front-end device lines.
2. Tosoh Quartz (Japan/USA): Renowned for extreme-tolerance vertical quartz furnace assemblies, quartz boats, and advanced robotic carriers for wafer foundries.
3. Shin-Etsu Quartz (Japan): Delivers comprehensive fused silica ware tailored for sub-10nm etching, thermal annealing, and epitaxial growth setups.
4. Techno Quartz Inc. (Japan): Excels in micro-slotted horizontal and vertical carriers dedicated to high-density cleanroom processing.
5. Donghai Kemzo Quartz Products Co., Ltd. (China): A high-agility, ISO 9001-certified export leader located in Donghai—China’s crystal capital. Kemzo bridges ultra-high-purity (99.99% SiO₂) material access with complete OEM custom CNC cutting, grinding, and flame-working, offering direct-from-source price stability.
6. Ferrotec Holdings (Japan): Provides integrated precision quartz ware alongside ceramics for semiconductor thermal and vacuum systems.
7. QDM (Quartz Design & Manufacturing, USA): Specializes in custom wafer carrier refits, repairs, and short-batch prototype quartz boats.
8. Saint-Gobain Quartz (France): Pioneer in specialty fused quartz fibers, crucibles, and customized high-thermal structural furnace ware.
9. MARUWA Co., Ltd. (Japan): Delivers precision quartz diffusion cassettes and batch carriers engineered for high-heat industrial furnaces.
10. Beijing Kaide Quartz Co., Ltd. (China): Key regional manufacturer producing standard diffusion tubes and wafer boats for semiconductor and solar cell lines.
Material Science Fundamentals: Electrically Fused vs. Synthetic Fused Quartz Carriers
Semiconductor process engineers evaluate wafer carriers based on their ability to resist sagging (creep resistance) under extreme thermal gradients while maintaining atomic cleanliness. The table below illustrates the critical specifications that determine the operational lifespan of a quartz carrier in operational furnaces:
| Performance Characteristic | High-Purity Natural Quartz (Kemzo Standard) | Synthetic Fused Silica (Extreme UV / Gate Grade) | Impact on Wafer Fab Yield |
|---|---|---|---|
| SiO₂ Purity Level | 99.99% – 99.998% | > 99.9999% (6N) | Prevents metallic diffusion (Fe, Cu, Ni) into gate oxides. |
| Hydroxyl (OH⁻) Content | < 15 – 30 ppm | < 1 ppm (Low OH) or up to 1000 ppm | Low OH ensures high viscosity and prevents premature high-temp sagging. |
| Continuous Service Temp | 1100 °C | 1150 – 1200 °C | Controls structural lifetime in atmospheric drive-in oxidation furnaces. |
| Thermal Expansion (CTE) | 5.5 × 10⁻⁷ / °C | 5.0 × 10⁻⁷ / °C | Prevents micro-cracks and thermal shock under rapid automated loading. |
| Slot Pitch & Width Tolerance | ± 0.05 mm (Precision CNC Machined) | ± 0.02 mm (Micro-Etched / Lapped) | Avoids robotic end-effector wafer transfer misalignment and chipping. |
Emerging Technology & Sourcing Trends (2025–2030)
How automation, wafer scaling, and global supply chain realignments are reshaping fused quartz carrier design.
1. Transition to 300mm / 450mm & Vertical Stacking
Fab architectures are shifting steadily toward large-diameter vertical furnace configurations. Vertical quartz wafer boats experience elevated vertical compressive stress. Sourcing trends show an aggressive shift toward low-bubble, electrically fused quartz with optimized viscosity coefficients, ensuring zero ladder deformation during 1200°C annealing cycles.
2. CNC Ultrasonics & Slot Chamfer Profiling
Manual glass lathe welding is rapidly giving way to 5-axis ultrasonic CNC milling. Wafer boats with precision chamfered slots eliminate micro-abrasion along wafer edges, drastically reducing airborne particle generation during robotic end-effector insertion in cleanroom classes down to ISO 3.
3. Near-Source Supply Resilience & Circular Refurbishment
With geopolitical logistics bottlenecks, tier-1 fabs are sourcing directly from integrated hubs like Donghai, China, cutting intermediate brokerage fees. Fabs also demand re-qualification and chemical flame-polishing programs, enabling valuable quartz boats to be stripped of nitride/oxide coatings and returned to service.
