Precision Quartz & Silica Capillary Catalog
Kemzo Quartz manufactures and supplies high-performance synthetic fused silica capillaries, pure quartz tubing, and specialized optical labware manufactured to exacting tolerances for Kobe's scientific institutions, maritime assay stations, and semiconductor fabricators.
Engineering Whitepaper: Synthetic Fused Silica Capillaries in Kobe's Scientific Ecosystem
A comprehensive examination of vitreous silica performance dynamics, deactivated capillary surfaces, and international supply-chain integration for the Hanshin Industrial Region.
In analytical chemistry, biochemical microfluidics, and photonics, fused silica capillary tubing represents the pinnacle of inert fluid transmission and spectral propagation. Kobe, historically anchoring the Hanshin Industrial Region, has evolved from a traditional port city into a premier bio-medical research cluster, spearheaded by the Kobe Biomedical Innovation Cluster (KBIC) on Port Island. The demand for ultra-pure synthetic fused silica capillary columns, transfer lines, and optical guide rods has reached unprecedented levels across academic, pharmaceutical, and high-tech manufacturing installations throughout Hyogo Prefecture.
1. Fused Silica vs. Natural Fused Quartz: Physical and Structural Distinctions
Procurement engineers in Kobe often navigate the trade-offs between natural quartz and synthetic fused silica. While both configurations consist predominantly of silicon dioxide ($SiO_2$), their crystallization origin and defect chemistry dictate their functional efficacy:
Natural quartz is manufactured by electric-arc or gas-flame fusion of high-grade natural pegmatitic quartz crystals, such as those refined in the renowned mineral corridors of Donghai. Natural fused quartz delivers unmatched economic efficiency and structural integrity for high-temperature furnace tubes, diffusion liners, and industrial sight glasses where trace metal content in the parts-per-million (ppm) range does not compromise operation.
Conversely, synthetic fused silica capillaries are produced through chemical vapor deposition—specifically the vapor-phase flame hydrolysis of silicon tetrachloride ($SiCl_4$) into synthetic amorphous silica soot. The resulting vitreous material achieves purity levels of 99.9999% ($>6N$), virtually eradicating metallic impurities such as aluminum, iron, sodium, and titanium down to sub-ppb thresholds. For chromatography in pharmaceutical laboratories in Chuo-ku or proteomic mass spectrometry at RIKEN Center for Biosystems Dynamics Research, synthetic silica capillaries ensure zero cation leaching and minimal baseline bleed.
| Physical / Chemical Property | Synthetic Fused Silica | Natural Fused Quartz | Operational Significance for Kobe Buyers |
|---|---|---|---|
| SiO₂ Content | > 99.9999% (< 0.1 ppm total metals) | 99.99% (< 20 ppm total metals) | Eliminates analyte absorption in gas and liquid chromatography |
| Refractive Index ($n_d$, 589.3 nm) | 1.4585 | 1.4585 | Enables optical light guidance and evanescent wave biosensing |
| Thermal Expansion (20–300°C) | 0.54 × 10⁻⁶ / °C | 0.55 × 10⁻⁶ / °C | Immunity to rapid thermal cycling inside GC oven enclosures |
| Working Temperature (Continuous) | 1100°C | 1100°C | Sustained operation in chemical reactor feedlines and combustion analysis |
| Softening Point | 1600°C – 1665°C | 1683°C | Defines upper thermal deformation threshold during flame fabrication |
| Optical Cutoff Range | Deep UV: 180 nm – NIR: 2500 nm | Standard UV: 260 nm – IR: 3500 nm | Permits UV detection in capillary electrophoresis down to 190 nm |
2. Internal Passivation and Polyimide External Protection
Raw fused silica exhibits reactive silanol groups ($Si-OH$) across its internal perimeter. When analyzing active pharmaceutical ingredients (APIs), organophosphates, or volatile organic compounds (VOCs) along Kobe’s marine shipping terminals, untreated silanol sites lead to tailing peaks and irreversible sample loss. Kemzo Quartz delivers internally deactivated capillaries treated with high-temperature vapor-phase silanization reagents (such as HMDS and DCDMS), yielding neutral, organo-functionalized surfaces that provide symmetric peaks across high-polarity matrices.
Externally, unprotected silica capillaries are vulnerable to atmospheric moisture, which induces micro-fissure propagation under tensile stress. Our export-grade capillaries feature a protective outer coating of thermally cured polyimide, rated for continuous exposure from -65°C up to 385°C. This flexible resin mantle allows minimum bending radii as tight as 5 mm for narrow-bore columns (75 µm ID), enabling seamless integration into compact autosamplers, HPLC column compartments, and lab-on-a-chip bio-cassettes.
Localized Applications Across the Kobe & Hyogo Industrial Basin
Engineered to satisfy stringent Japanese Industrial Standards (JIS) and specific regional manufacturing and analytical demands.
Biomedical Innovation & Proteomics (Port Island)
Within the Kobe Biomedical Innovation Cluster (KBIC), capillary electrophoresis and nano-LC-MS/MS platforms rely on our 50 µm to 100 µm inner diameter deactivated fused silica capillaries for high-resolution peptide fractionation, biomarker discovery, and cellular metabolomics without protein surface retention.
Hydrogen Fuel & Marine Logistics (Port of Kobe)
Kobe’s pioneering position in the international liquefied hydrogen supply chain demands rugged gas chromatography (GC) columns. Our fused quartz combustion tubes and capillary transfer columns provide vacuum-tight, low-bleed separation of trace hydrogen isotopes, methane, and bunker fuel sulfur emissions.
Semiconductor & Optoelectronics (Nishi-ku)

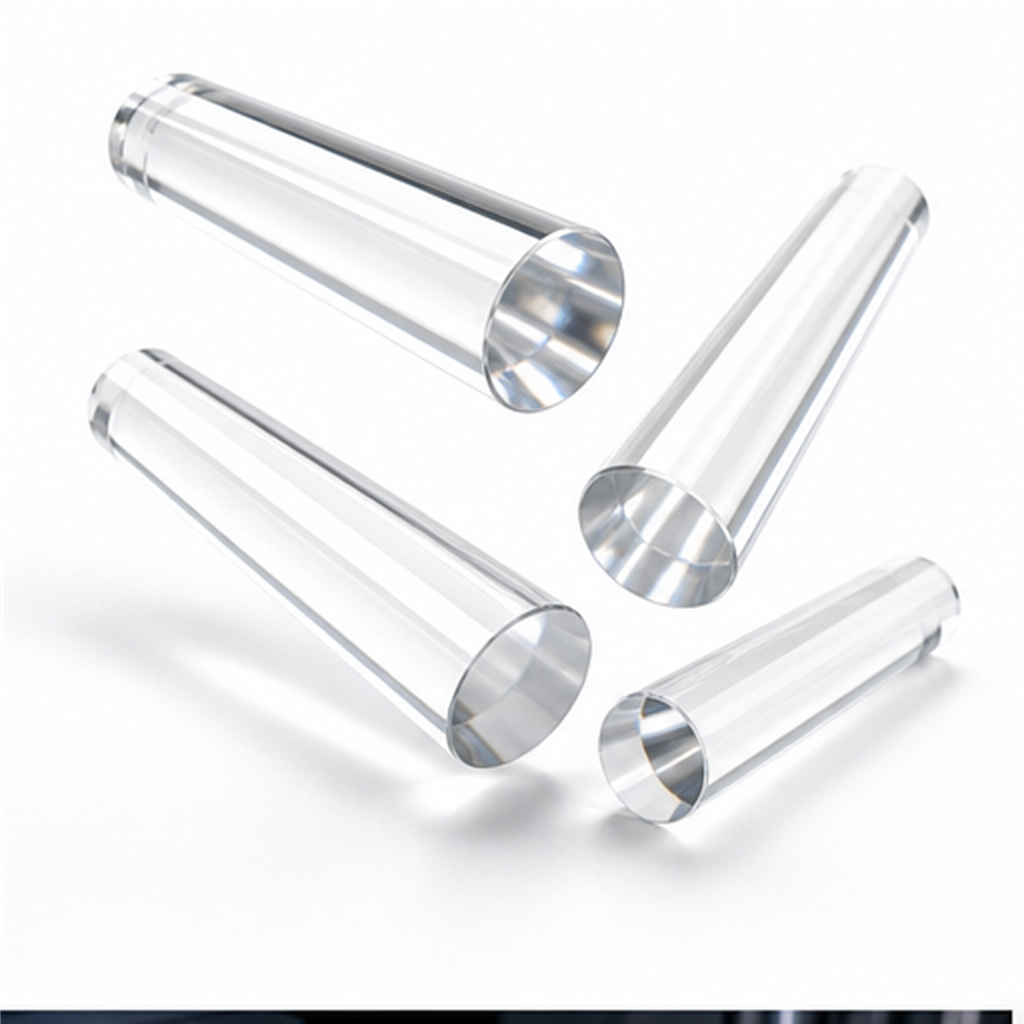

Fabrication plants in Nishi-ku and neighboring Akashi utilize our synthetic silica light guide rods, optical quartz windows, and capillary gas-injection nozzles for precise wafer annealing, CVD precursors, and excimer laser beam shaping with extreme radiation resistance.
Industrial Transformation & Future Procurement Trends in Kobe
How green transformation (GX), automated bio-foundries, and supply chain reshoring shape quartz material consumption.
The industrial landscape across the Hanshin Economic Corridor is experiencing accelerated diversification. Three decisive industry shifts are recalibrating the technical specifications demanded by Kobe purchasing departments:
1. Decarbonization and the Kobe Clean Energy Hub: Kobe City's municipal commitment to becoming a zero-carbon maritime gateway has propelled massive R&D into hydrogen carriers, ammonia cracked gases, and synthetic carbon-neutral hydrocarbons. Analytical laboratories deployed across Rokko Island and Wada Point require capillary tubes capable of operating under high pressure differentials and high temperatures while maintaining chemically passive inner pathways. Fused silica’s thermal expansion stability ($5.5 \times 10^{-7} /^\circ\text{C}$) ensures zero micro-cracking across sub-zero cryo-sampling and high-heat combustion cycles.
2. Next-Generation Microfluidics and Point-of-Care Diagnostics: Driven by collaborative initiatives between Kobe University School of Medicine and regional engineering firms, clinical instrumentation is migrating from macro-scale glassware to automated capillary-based microchips. These platforms require custom laser-cut fused silica capillaries with ultra-flat 90° planar polished end-faces to prevent turbulent dispersion at the interface of micro-valves and capillary flow cells.
3. Resilience in Raw Material Sourcing: Geopolitical realignments have led procurement managers across Kansai to re-examine single-source dependency. By partnering directly with established manufacturers located in raw material hubs—such as Kemzo Quartz in Donghai—Japanese industrial importers establish direct, ISO 9001-certified distribution pipelines that eliminate intermediaries, secure factory-gate pricing, and guarantee consistent raw quartz traceability.
Kemzo Quartz: Engineering Excellence & Export Authority
Combining the mineral wealth of China's Crystal Capital with high-precision fabrication to provide Kobe buyers with unparalleled quality and reliability.
Integrated Mineral Advantage
Situated in Donghai, Jiangsu, our plant operates direct raw material screening, ensuring SiO₂ purity up to 99.999% and zero batch-to-batch volatility.
Rapid Kobe Lead Times
Direct maritime cargo routes from Lianyungang and Shanghai to the Port of Kobe guarantee customs-cleared arrival within 3 to 5 business days.
Full OEM & Drawing Service
11+ years of bespoke fabrication: laser cutting, precision capillary bore drawing, flame polishing, grinding, and ground-joint mouth assemblies.
ISO 9001 Certified QC
Polarimetric stress testing, optical interferometry, and spectrophotometric calibration on every custom capillary batch prior to departure.
Frequently Asked Questions by Kobe Procurement Teams
Clear, direct answers regarding specifications, international commercial terms, and import logistics for Japanese engineering buyers.
What internal diameter (ID) tolerances can Kemzo Quartz guarantee for capillary tubing?
For high-precision capillary tubing used in analytical instruments and microfluidics, we maintain dimensional tolerances down to ±0.002 mm (±2 µm) on custom draw orders, and ±0.005 mm on standard bore sizes (ranging from 10 µm up to 530 µm ID). Every export shipment includes an optical microscopic verification report showing concentricity and bore uniformity across the entire tube length.
How are fragile fused silica capillaries packaged for sea and air freight to Kobe?
Capillary products are wound onto anti-static reels or cushioned within custom groove-molded high-density polyethylene (HDPE) trays. For straight capillaries and rigid quartz tubes, each piece is individually sleeved in anti-static foam wraps, nested in impact-absorbing corrugated dividers, and sealed within export-grade, fumigated plywood crates compliant with ISPM 15 standards. This ensures zero breakage via air cargo to Kansai International Airport (KIX) or container shipping to the Port of Kobe.
Can Kemzo Quartz provide OEM production according to Japanese Industrial Standards (JIS)?
Yes. We regularly supply components built to JIS R3216 (Testing methods for quartz glass) and JIS B7184 specifications. Our precision quartz machining center accommodates technical drawings in DXF, STEP, or PDF formats, delivering bespoke ground glass joints (e.g., TS 10/19, 14/23, 24/40), flame-sealed ends, side flanges, or integrated optical observation windows.
What are the typical Incoterms and payment terms for imports into Hyogo Prefecture?
We routinely execute shipments under CIF Kobe, DDP Kobe/Osaka, or FOB Shanghai/Lianyungang. Accepted payment mechanisms include wire transfer (T/T), confirmed irrevocable Letters of Credit (L/C), and secure digital clearing in JPY, USD, or EUR. For regular enterprise customers and certified corporate accounts in Japan, flexible credit settlement schedules are available following verification.
What is the difference between synthetic silica capillaries and standard borosilicate capillary glass?
Borosilicate glass ($Pyrex$-type) contains 10-15% boron trioxide and alkali oxides, capping its service temperature at ~500°C and resulting in higher thermal expansion ($3.3 \times 10^{-6} /^\circ\text{C}$). Synthetic fused silica is 99.9999% pure $SiO_2$, tolerating sustained temperatures of 1100°C, remaining immune to acid leaching (except HF), transmitting deep ultraviolet light down to 180 nm, and offering an ultra-low thermal expansion rate that prevents cracking during instantaneous temperature transitions.
Connect Directly with Kemzo Engineering
Send your dimensional drawings, required bore tolerances, or application parameters. Our specialized technical engineering department provides feasibility reviews, quotes, and delivery timelines within 1 hour.
